Machine Specifications

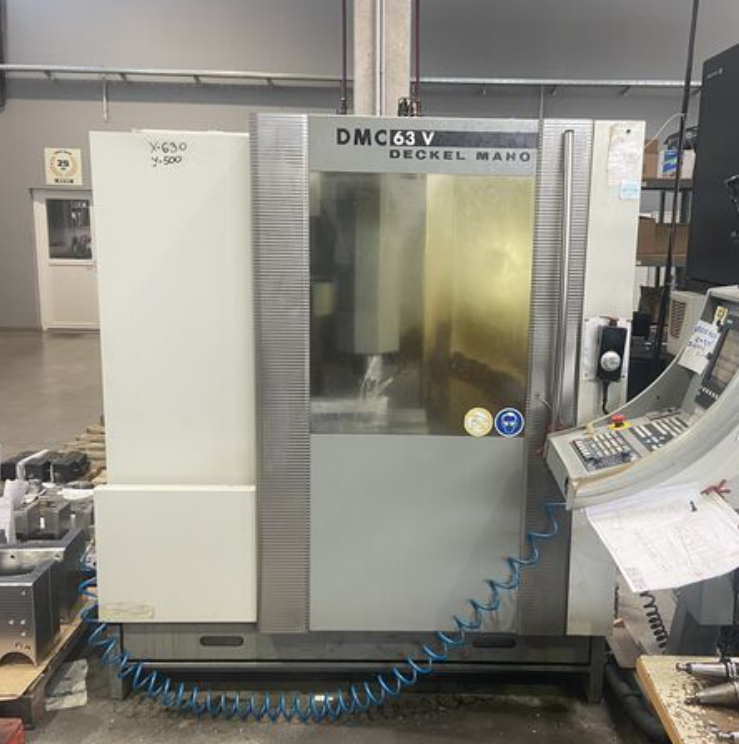

Machine Type : Vertical Machining Center
Brand : DECKEL MAHO (DMG)
Model : DMC 63 V
Manufacture Year : 1997
Location : Germany
Technical Details
X – Axis Travel : 630mm
Y – Axis Travel : 500mm
Z – Axis Travel : 500mm
Table Size : 800 x 500mm
Max Table Load : 500kg
Spindle Holder : SK 40
Max. Tool Weight : 7kg
Distance spindle nose : table min. 150 mm - max. 650 mm
Spindle speed : 8000 rpm
Feed speed : 30000 mm/min
Rapid traverse speed : 30000 mm/min
Compressed air connection : 6 bar
Spindle drive : 9 kW at 100% ED - 11 kW at 40% ED
Mains connection : 400 Volt, 50 Hz, 30 kVA, 45 Amp
Spindle drive : direct drive by speed-controlled asynchronous motor
Measurements
Length Measurements : 3100 mm
Width Measurements : 2500 mm
Height Measurements : 2550 mm
Weight Measurements : 4500 kg
