Machine Specifications

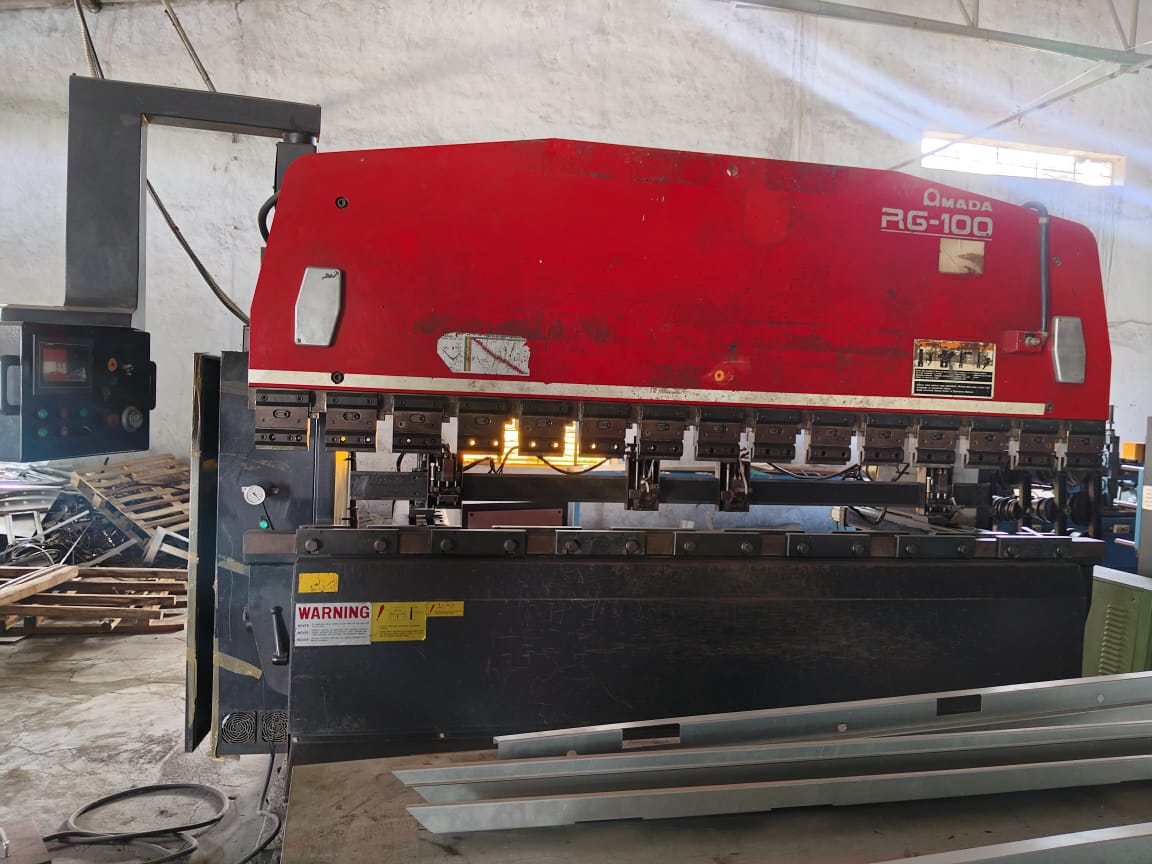

Machine Type : Press Brake Machine
Brand : Amada
Model : RG 100
Manufacture Year :
Location :
Technical Details
Capacity : 100 tons
Table Length : 3000 mm
Max. Bending Length : 3100 mm
Distance between upwrights : 2550 mm
Throat Depth : 400 mm
Maximum Stroke : 100 mm
Open Height : 370 mm
Main Motor : 400/460.230 Volt
Power Required : 10.2 kVA
Hydraulic Oil Reservoir : 65 L
Measurements
Measurements Width : 1555 mm
Measurements Height : 2380 mm
Measurements Depth : 3840 mm
Machine Weight : 6400 kg
