Machine Overview
Type : CNC Turret Punching Machine
Brand : Amada
Model : AE2510NT
Manufacturing Year : 2014
Location : Japan
Production Hours : Not Available
Condition : Dismentalled
Technical Specifications
PUnching Capacity : 20 Ton
X - Axis Travels : 2500 mm
Y - Axis Travels : 1270mm

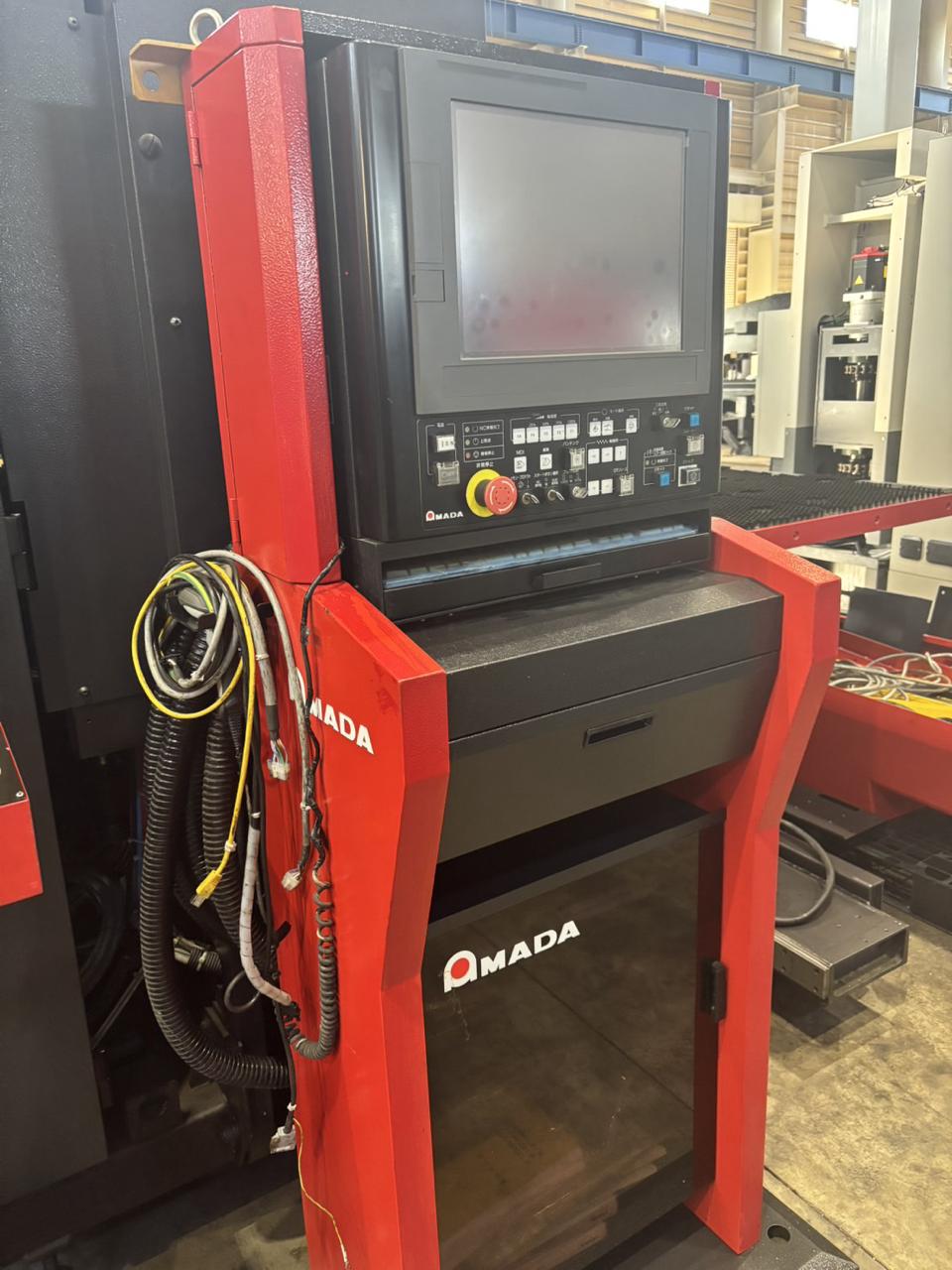

Controller : AMNC/PC (FANUC)
Maximum Sheet Thickness : 3.2 mm
Maximum Length with Repositioning : 5000 mm
Max Punching Diameter : 114 mm
Number of strokes per minute : 900
Table Type : Brush Table
Sheet Holding Clamps : 3 Nos
Maximum Weight of the workpiece : 150 kg

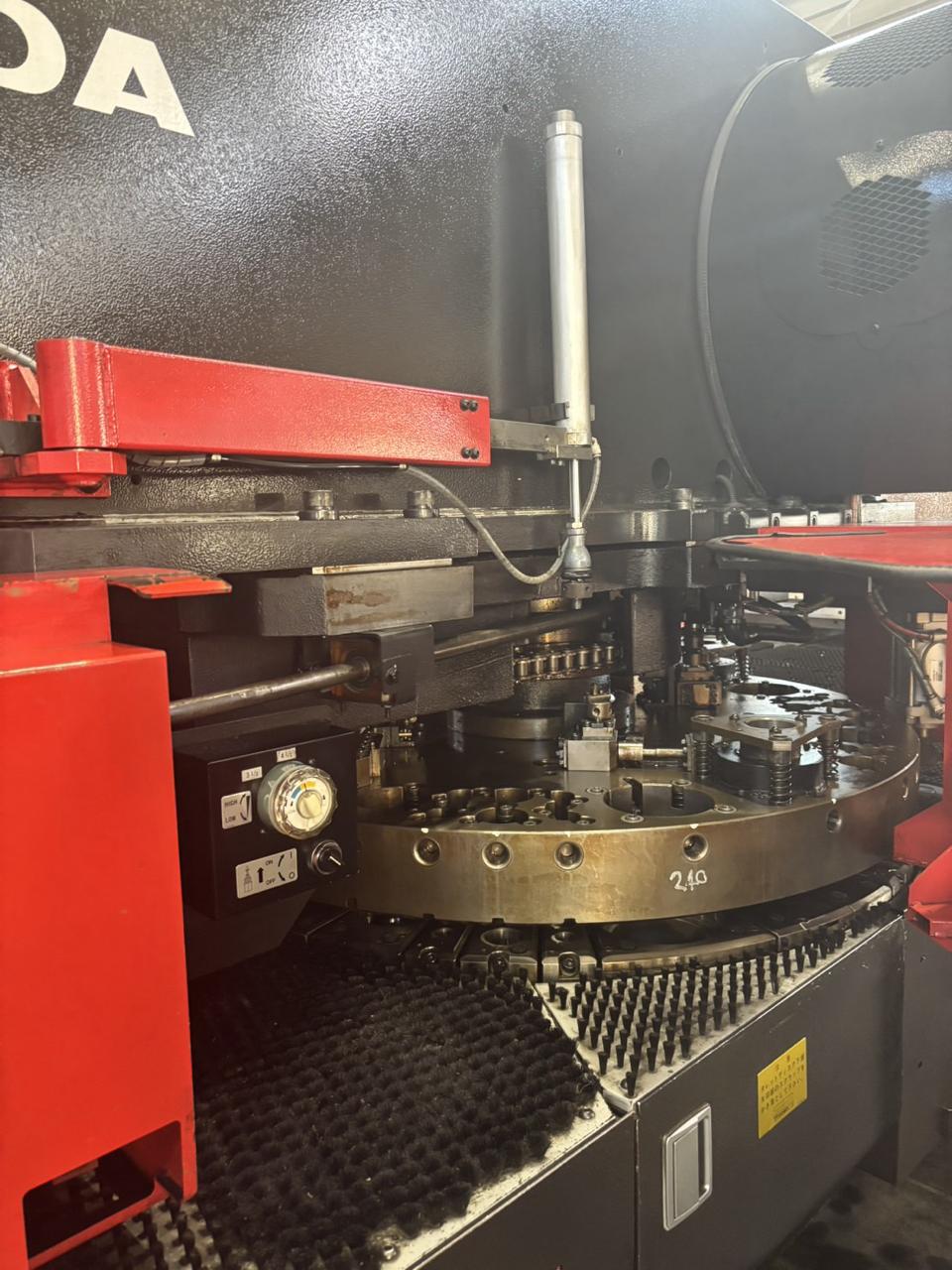

Turret Layout : 58 Stations; 2 Auto Index
Length x width x height : 4165.0 × 5120.0 × 2082.0
Weight : 13000 kg
